Battery Charger-Smt
BAC1210
*It usually refers to a static converter that uses electronic power semiconductor devices to convert AC power with fixed voltage and frequency into DC power. It is specially designed for charging lead-acid batteries or battery packs widely used in generators. It has a small overall size, light weight, and is easy to move and install.
Quantity

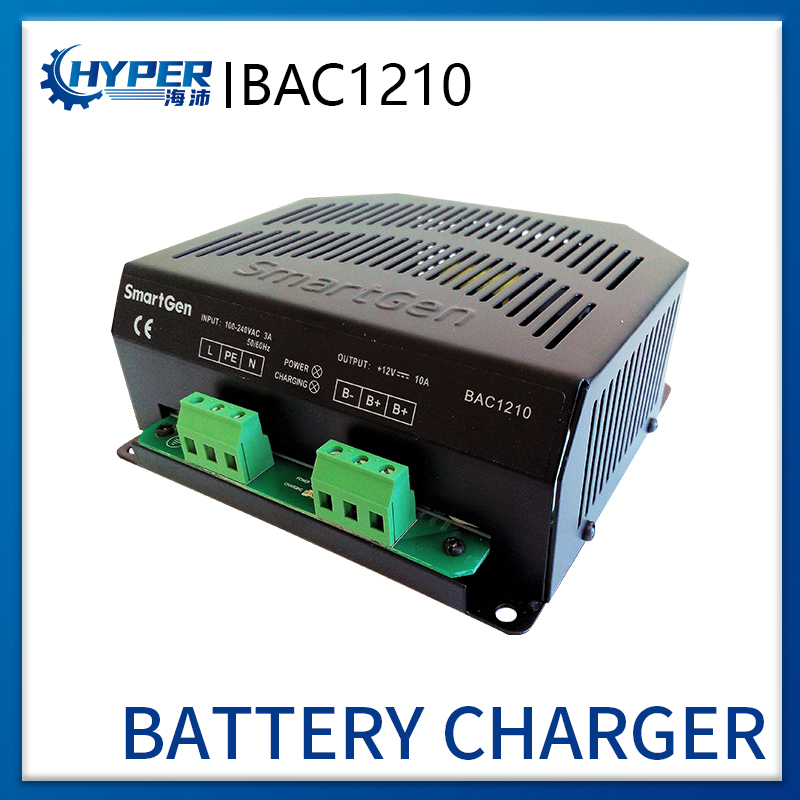

SmartGen BAC 1210-12V (12V/10A, 90-280VAC 50/60Hz) Battery Charger
Switch power supply structure, wide input alternating voltage range, small size, light weight, high efficiency rate;
Automatic two-stage charging process (first constant current, then constant voltage) carried out according to storage battery charging characteristics to prevent overcharging and significantly prolong battery lifetime;
Built-in current protective circuit, which can give effective protection when output over current, short-circuit or reverse connection occurs. Regard power lamp or charge lamp fast blinking as alarm.Suitable for 12V storage battery and the rated current is 10A;
LED display: Power indication (Green light) and charging indication (Red light).
